Features:

Use to dispense the Pneumatic ATF fluid of vehicles.

Provide with pneumatic operation.

A Screw valve to allow easily change the action of extracting or dispensing.

Comes with new 14 pcs one touch transportation adapters.

Pneumatic 6L /10L capacity air oil extractor.

Specification:

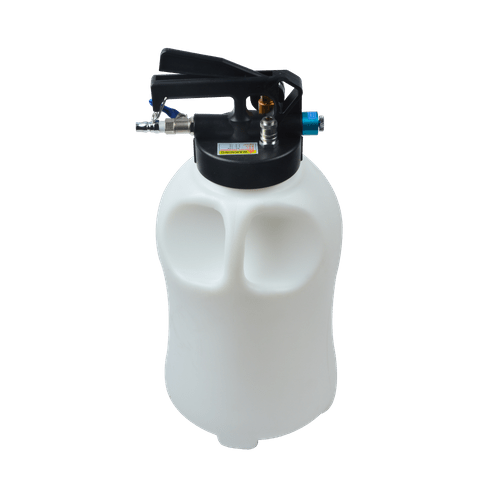

1. 10L  Pneumatic ATF Oil Extractor & Dispenser is use to extract, transfer and dispense fluid quickly, safely and cleanly.

2. Provided with the safety valve, pre-setting 43 psi (3 Bar), the exceed pressure will be released automatically.

3. Provided with the pressure gauge which can be read and control the pressure in the tank more easily.

4. It has the 2 way control valve for dispensing more safely. And there's the screw valve to allow easily change the action of extracting or dispensing.

5. High flow control valve for extracting fluid more quickly.

6. 10L  Pneumatic capacity reservoir with volume guide for controlling fluid more easily

7.Need to configure an air compressor to be used together

Air inlet : 1/4" PT

Fluid temperature range : -3°F ~ 140°F

Oil dispensing working pressure : under 43 psi

Oil extracting working pressure : 40-170 psi

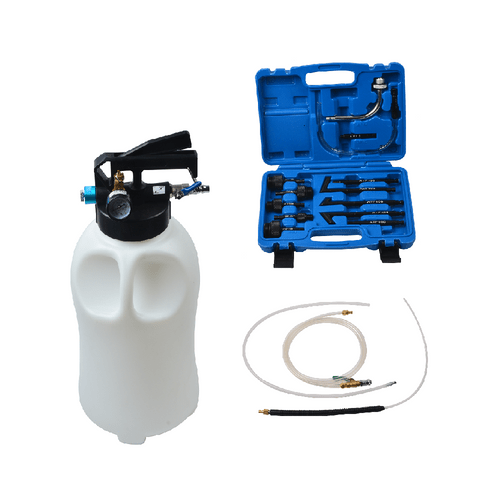

Package List：

1M nylon hose

2M PU hose with one touch controller gun for oil dispensing.

1 pcs universal flexible rubber nozzle

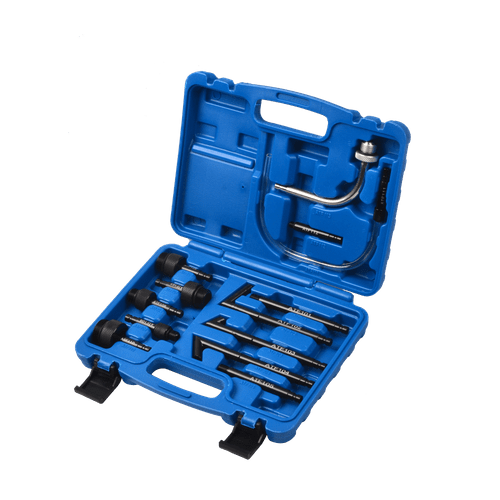

13 pcs new one touch adapters for ATF oil transportation

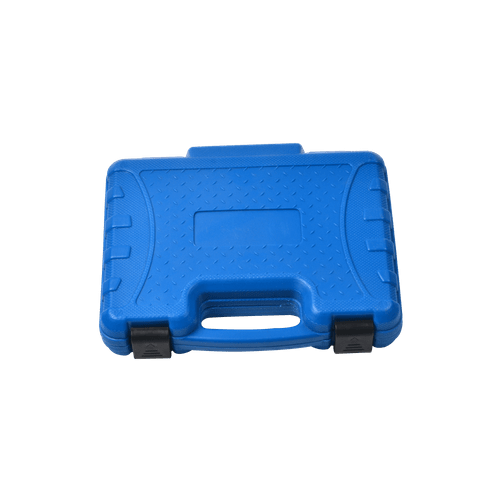

1* Storage Case
