It is essential to ensure that the front crankshaft seal is correctly installed and aligned. Also, comes with the tools for the removal/installation of H.P pump. Applicable for Ford Duratorq (Puma) 2.0, 2.2, 2.4, & 3.2 Litre Diesel Engines in Citroen, Fiat, Ford, Jaguar, Land Rover, LDV, Peugeot.

Application:
Ford Duratorq (Puma) 2.0, 2.2, 2.4 & 3.2L Diesel Engines in:

Model:
Citroen: Relay (06-11), Jumper III
Fiat Ducato (06-11)
Ford: Mondeo (00-07), Transit (00-11)
Jaguar: X-Type (01-10)
Land Rover: Defender (07-11)
LDV: Convoy (02-06)
Peugeot: Boxer III (06-11)
Engine Code:
2.0: ABFA, D3FA, D5BA, D6BA, F3FA, FIFA, FMBA, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB
2.2 (Chain Driven H.P.Pump): QJBA (BG), QJBB, QJBC, QJBD
2.2 (Camshaft Driven H.P. Pump): 4HM, 4HU, 4HV, P8FA, P22DTE, QVFA, QWFA
2.4: 244DT, D0FA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB, HEFA, HFFA, JXFA, PHFA, ZSD 424
3.2: SAFA (Engine Timing Only)
Fuel Injection Pump Sprocket Locking Tool
2.2L Duratorq TDCi (Global Puma)
Stage V Diesel: (303) Engine: (3) Power Train: 2006.5 (04/2006- ) : Transit
3.2L Duratorq TDCI (Puma) Diesel: (303) Engine: (3) Power Train: 2006.5 (04/2006-): Transit
2.2L Duratorq TDCi (Puma) Diesel: (303) Engine: (3) Power Train: 2012.00 (04/2011-): Ranger
3.2L Duratorq TDCI (Puma) Diesel: (303) Engine: (3) Power Train: 2012.00 (04/2011-): Ranger

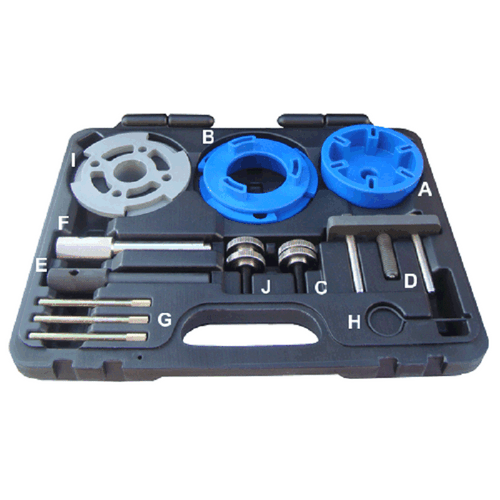

Contents:
Ref OEM Description
A 303-682 Engine Cover Aligner
B 303-679A Engine Cover / Crankshaft Seal Removal / Installation Tool
C 303-1151 High Pressure Pump Sprocket Retaining Tool
D 303-249 H.P. Pump Removal Tool
E 303-675 Flywheel Locking Pin (Black)
F 303-698 Flywheel Locking Pin (Silver)
G 6mm Drill Bit Locking Pin Set (3 x Pins)
H 2mm Pin Tensioner Locking Pin
I 303-1317 Fuel Injection Pump Sprocket Locking Tool
