SK1862 Universal Car Gasoline Fuel Injector Cleaning Tester Non-Dismantle Tool
  • SK1862 Universal Car Gasoline Fuel Injector Cleaning Tester Non-Dismantle Tool
  • SK1862 Universal Car Gasoline Fuel Injector Cleaning Tester Non-Dismantle Tool
  • SK1862 Universal Car Gasoline Fuel Injector Cleaning Tester Non-Dismantle Tool

SK1862 Universal Car Gasoline Fuel Injector Cleaning Tester Non-Dismantle Tool

Item Number: SK1862

Package: BMC

MOQ: 50

OEM: Accpetable

Delivery: 30-40 days

Port: Shanghai/Ningbo
More Details

Product Overview:

When the car idling instability, fuel consumption increased, difficult to start phenomenon, may be due to the automotive fuel system has carbon deposition, residual products, affecting the normal work.  Our cleaner kit will help you out with simple and fast cleaning.

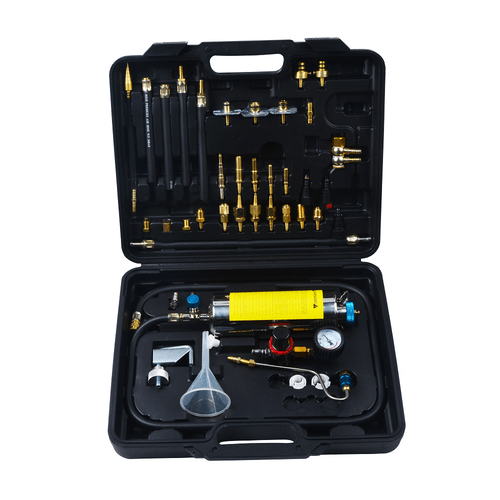

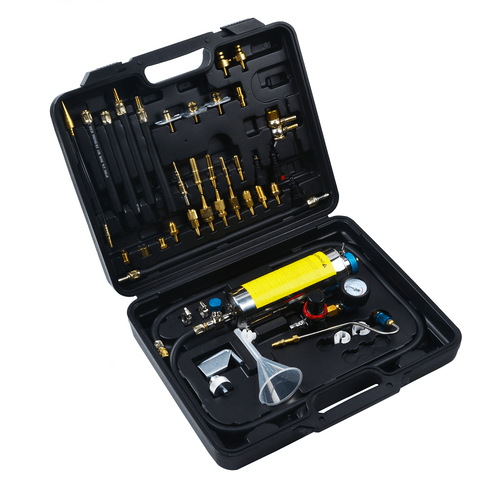

This injector clean kit includes many different adapters, thus covering almost all the EU, Asia, USA cars and light trucks.

The system not only features with high and low pressure cleaning function. At the same time it could also clean the whole fuel system including throttle valve, fuel nozzle and combustion chamber.

Check fuel injection model, throttle or EFI:

EFI :

1.Find out the fuel return hose, disconnect it and plug it with suitable adaptor;

2.Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;

3.Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the  pump will not work;

4.Charge the cleaning fluid into the tank of the cleaner;

5.Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;

6.Check all connect point to make sure there is not leakage;

7.Start the engine to clean the fuel system



To Throttle model:

The way of connection is the same, just adjust the pressure of the air source 1-5PSI.

The way to identify the inlet and return hose:

1.Generally speaking, inlet hose is bigger, return hose is smaller;

2.There is always a filter connected in the inlet hose side, and a buffer in the return side;

3.There is arrow on the hose to show the fuel flow direction



Notice:

Clean liquid not included.

Fit for gasoline injector, not for diesel injector!!

Open flame prohibited in 10m diameter.



Specifications:

Pressure: 0 - 220 PSI

Weight: 3.65kg
