Description:

Master tool set contains a comprehensive set of tools to perform camshaft + VANOS timing on M52TU, M54, M56 Engines. The tools are also applicable for camshaft timing on non-VANOS engines (M42, M44, M50, M52, MS50US and S52US).

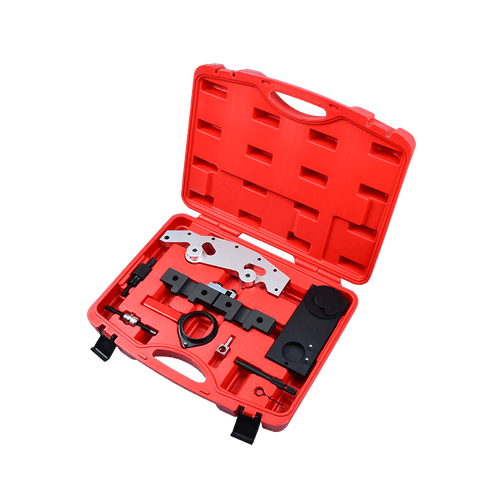

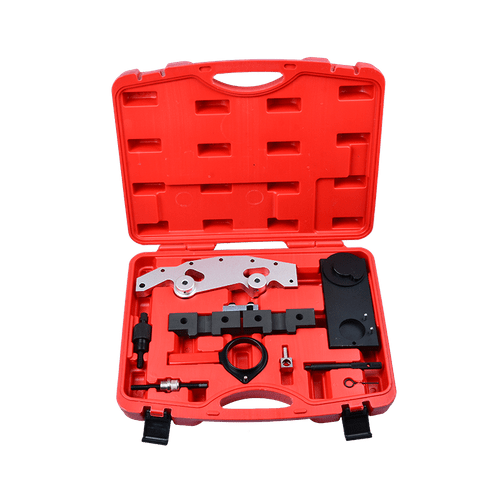

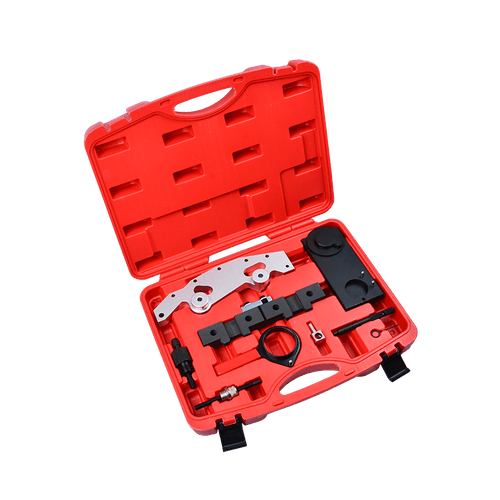

Alignment jig (large aluminum item in photo)

Sprocket assembly jig

Rigid chain tensioner

Chain tensioner lock pin VANOS compressed air connector

Camshaft Alignment Engine Timing Locking Tool Master Set Double Vanos For BMW M52TU/M54/M56

Alignment Jig: Adjusting plate for setting valve timing on engine with double Vanos.

Sprocket Assembly Jig: Use for preassembling secondary chain sprockets with chain on camshafts

Rigid Chain Tensioner: Use to tension primary chain

Chain Tensioner Lock Pin: Locks chain tensioner during timing

VANOS COMPRESSED AIR CONNECTION: Use to pressurize the single and double Vanos unit when checking or removing and replacing.

Specifications:

Condition: 100% Brand New

For BMW 6 cylinder engine: M52TU (1998-2000), M54 (2001-2004), & M56 (2003 to present)

M52TUB25

1997-2001 E46 323i/323Ci/323ti (M52T)

1998-2001 E39 523i (M52TU)

1998-2001 E36/7 Z3 (M52TU)

M52TUB28

 1997-2001 E46 328i/328Ci (M52TU)

 1997-2001 E36/7 Z3 2.8 (M52B28/Z3)

 1998-2001 E39 528i (M52TU)

 1998-2001 E38 728i (M52TU)

M54B22

 2001-2003 E46 320i/320Ci

 2001-2003 E39 520i

 2001-2002 E36 Z3 2.2i

 2003-2005 E85 Z4 2.2i

 2003-2005 E60/E61 520i

M54B25

 2001-2002 E36/7 Z3 2.5i

 2001-2005 E46 325i/325xi

 2001-2006 E46 325Ci

 2001-2004 E46 325ti

 2001-2004 E39 525i

 2003-2004 E60/E61 525i/525xi

 2004-2006 E83 X3 2.5i

 2004-2006 E85 Z4 2.5i

M54B30

 2001-2005 E46 330i/330xi

 2001-2006 E46 330Ci

 2001-2003 E39 530i

 2001-2002 E36 Z3 3.0i

 2003-2005 BMW E60 530i

 2003-2006 E85 Z4 3.0i

 2004-2006 E83 X3 3.0i

 2001-2006 E53 X5 3.0i

Package List：

1*Engine Timing Locking Tool Set

1*Carrying Case
