Camshaft Alignment Vanos Timing Tool Set for BMW   M60 M62

For fixing the camshaft chain tensioner.

Applicable: M60, M62 (VANOS).

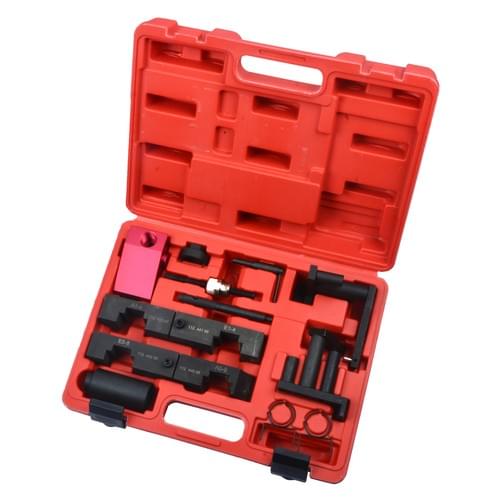

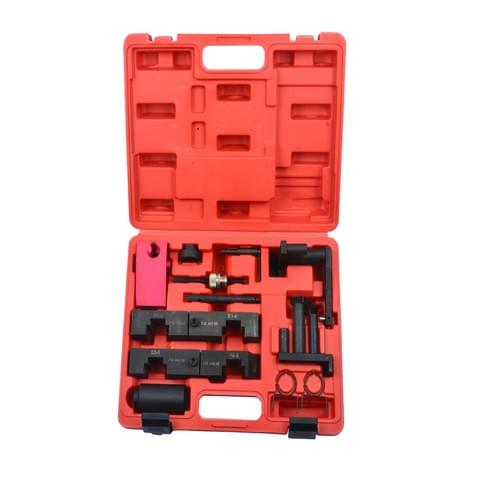

Master tool set contains a comprehensive set of tools to perform camshaft timing on M60 engines and camshaft +

VANOS timing on M62 Engines.

(# B112440) M60 M62 Camshaft Alignment / Timing Tools:

This tool kit contains all the necessary, engine-specific tools to time the camshafts in BMW M60 and M62 engines.

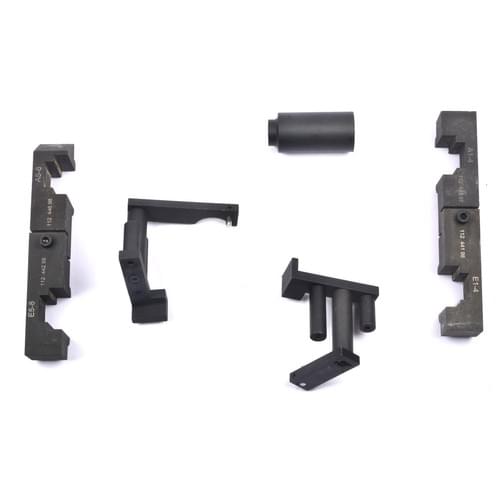

Includes: Two camshaft alignment jigs to fix the camshafts in the proper orientation during assembly.

( # 112300)Top dead center pin:

To align the flywheel at the TDC position.

( # 114230)Rigid chain tensioner:

Use to tension primary chain. Short format for late model V8 also for M3.

(# 116450)M62 VANOS Camshaft Timing Tool:

Two fixtures to lock the sensor wheels in place during timing of VANOS equipped M62 engines.

For: M62VANOS (1999-2002)

(# 116420)VANOS Electromagnetic Valve Socket:

Special deep, thin-wall 32-mm socket that is required to remove the electro-magnetic valve on 6 and 8 cylinder engines equipped with VANOS variable valve timing.

For: M54, M62VANOS

(*R)M62 Chain Tensioning Bracket Trestle:

Used to provide a mounting point for the rigid chain-tensioning tool while the front timing case is removed from the engine for servicing the timing-chain, servicing of VANOS components or adjusting cam timing.
