Camshaft Crankshaft Engine Alignment Timing Lock Fixture Tool Set Kit For Volvo
Purpose for alignment of the cam and crankshafts. Also enables correct installation of the Camshafts with the cam cover.

This set is designed to properly Secure and Align the cylinder head, cam and crankshaft during Removal and Installation of cylinder head assemblies on (4), (5) and (6) cyl engines - also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.

Master Set for Volvo tools designed to properly secure and align the cam and crankshaft during R & R of cylinder head assemblies on (5) and (6) cyl engines -also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.

Volvo Reference numbers: 999-5454, 999-5453, 999-5452, 999-5451.

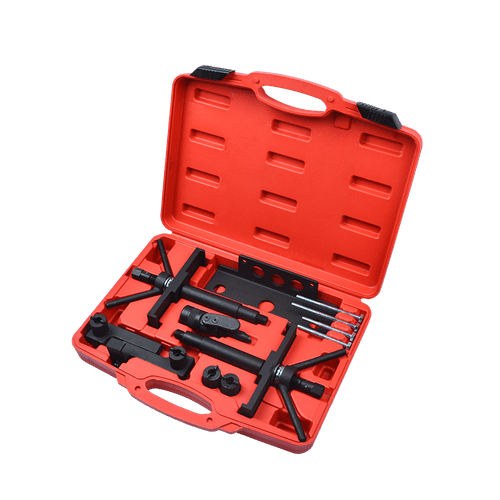

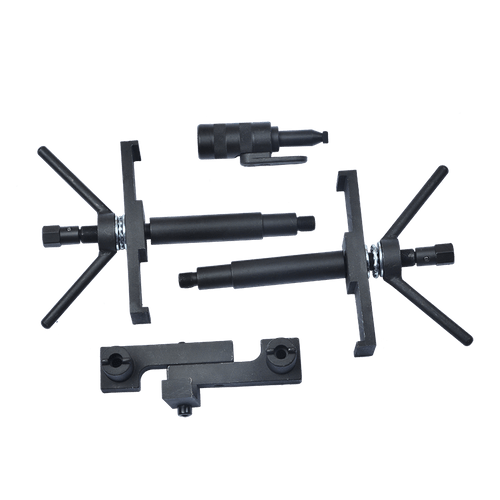

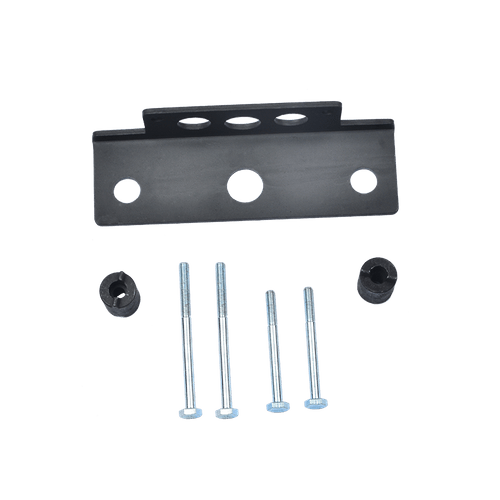

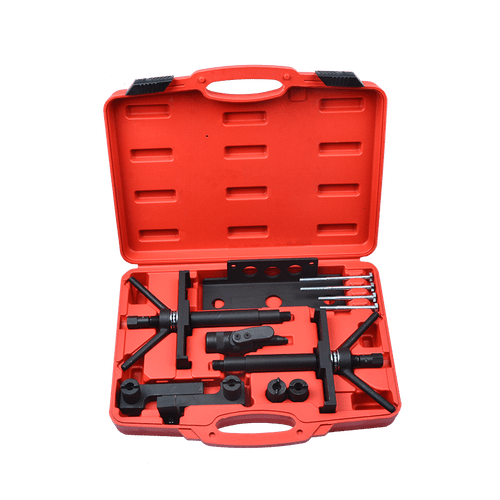

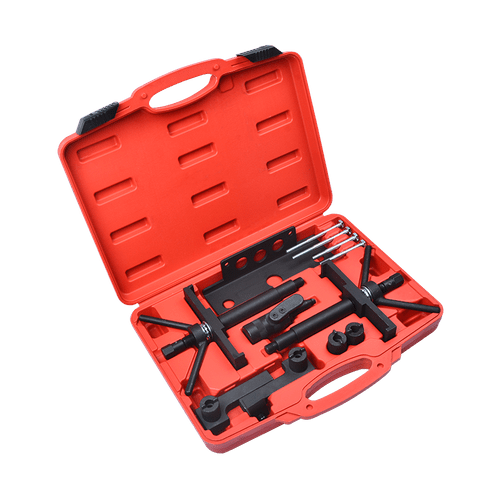

Kit Contains: 2- 9995454, 1- 9995452, 1- 9995453, 9995254, 1- 9995451

Applicable: VOLVO models 850, 960, S40, S70 and S90.

Popular Applications include 700, 800, 850, 900, 960, C70 Coupe and Conv, S40, S60, S70, S80, S90, V70-2000, V70XC, XC70, V90, XC90

Models: S80 (07-), V70 (08-), S80 (-06), XC90, V70 (00-08), V70 XC (01-) / XC70 (-07), S60, C30, C70 (06-), S40 (04-), V50, S40 (-04), V40, 850, C70 Coupe (-02), C70 Conv (-05), S70, V70 (-00), V70 XC (-00), 960, S90, V90

Engine: B41XX, B42XX, B52XX, B62XX, B63XX, GB5252S

Data on the Press Tools (ref 999 5454)(Threads: 14x1.5)
Engine:B4164S, Engine:B4164S2, Engine:B4184S, Engine:B4184S10, Engine:B4184S2, Engine:B4184S3, Engine:B4184S9, Engine:B4184SJ, Engine:B4194T, Engine:B4194T2, Engine:B4204S, Engine:B4204S2, Engine:B4204T, Engine:B4204T2, Engine:B4204T2 CVVT, Engine:B4204T3, Engine:B4204T3 (USA)(CDN), Engine:B4204T4, Engine:B4204T5, Engine:B5202FS, Engine:B5204FS, Engine:B5204FT, Engine:B5204T2, Engine:B5204T3, Engine:B5204T4, Engine:B5204T5, Engine:B5234FS, Engine:B5234FT, Engine:B5234T2, Engine:B5234T3, Engine:B5234T4, Engine:B5234T5, Engine:B5234T6, Engine:B5234T7, Engine:B5234T8, Engine:B5234T9, Engine:B5244S, Engine:B5244S2, Engine:B5244S4, Engine:B5244S5, Engine:B5244S6, Engine:B5244S7, Engine:B5244SG, Engine:B5244SG2, Engine:B5244T, Engine:B5244T2, Engine:B5244T4, Engine:B5244T5, Engine:B5244T7, Engine:B5252FS, Engine:B5254FS LH 3.2 , Engine:B5254FS M 4.3, Engine:B5254FS M 4.4, Engine:B5254S DENSO, Engine:B5254T, Engine:B5254T2, Engine:B5254T4, Engine:B6284T,

700, 800, 850, 900, 960, C70 Conv, C70 Coupe, S40 (-04), S40 (04-), S60, S70, S80, S90, V40, V50, V70 (-00), V70 (00-), V70 XC (-00), V70 XC (01-) / XC70, V90, XC90. (please make sure the threads size is fit for your engine)

Data on the Jig (ref 999 5452)
Engine:B4204T3, Engine:B4204T3 (USA)(CDN), Engine:B4204T4, Engine:B4204T5, Engine:B5202FS, Engine:B5204FS, Engine:B5204FT, Engine:B5204T2, Engine:B5204T3, Engine:B5204T4, Engine:B5204T5, Engine:B5234FS, Engine:B5234FT, Engine:B5234T2, Engine:B5234T3, Engine:B5234T4, Engine:B5234T5, Engine:B5234T6, Engine:B5234T7, Engine:B5234T8, Engine:B5234T9, Engine:B5244S, Engine:B5244S2, Engine:B5244S4, Engine:B5244S5, Engine:B5244S6, Engine:B5244S7, Engine:B5244SG, Engine:B5244SG2, Engine:B5244T, Engine:B5244T2, Engine:B5244T3, Engine:B5244T4, Engine:B5244T5, Engine:B5244T7, Engine:B5252FS, Engine:B5254FS LH 3.2 , Engine:B5254FS M 4.3, Engine:B5254FS M 4.4, Engine:B5254S DENSO, Engine:B5254T, Engine:B5254T2, Engine:B5254T3, Engine:B5254T4, Engine:B6244FS, Engine:B6254FS, Engine:B6254GS, Engine:B6284T, Engine:B6294S, Engine:B6294S2, Engine:B6294T, Engine:B6304FS, Engine:B6304FS2, Engine:B6304GS, Engine:B6304S3, Engine:GB5252S

700, 800, 850, 900, 960, C70 Conv, C70 Coupe, S40 (-04), S40 (04-), S60, S70, S80, S90, V40, V50, V70 (-00), V70 (00-), V70 XC (-00), V70 XC (01-) / XC70, V90, XC90

Data on Pin (ref 999 5451)
Appl: 700, 800, 850, 900, 960, C70 Conv, C70 Coupe, S40, S60, S70, S80, S90, V40, V70 -2000, V70 Engine:B4164S Engine:B4164S2, Engine:B4184S, Engine:B4184S10, Engine:B4184S2, Engine:B4184

Data on the Angled Plate (with holes in it) (ref 999 5453)
Engine:B4164S, Engine:B4184S, Engine:B4194T, Engine:B4204S, Engine:B4204T, Engine:B5202FS, Engine:B5204FS, Engine:B5204FT, Engine:B5204T2, Engine:B5204T3, Engine:B5234FS, Engine:B5234FT, Engine:B5234T2, Engine:B5234T3, Engine:B5234T4, Engine:B5234T5, Engine:B5234T6, Engine:B5234T7, Engine:B5252FS, Engine:B5254FS LH 3.2 Engine:B5254FS M 4.3, Engine:B5254FS M 4.4, Engine:B5254T, Engine:B6304FS, Engine:B6304FS2, Engine:B6304GS, Engine:D4192T2
700, 800, 850, 900, 960, C70 Conv, C70 Coupe, S40 (-04), S70, S90, V40, V70 (-00), V70 XC (-00), V90

(Item does not come with any instructions and packaging / color maybe varied)
