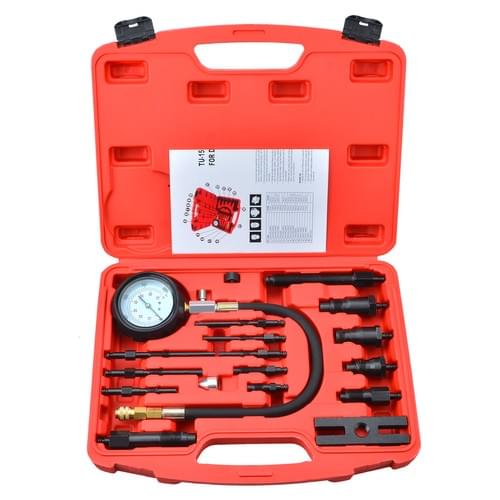

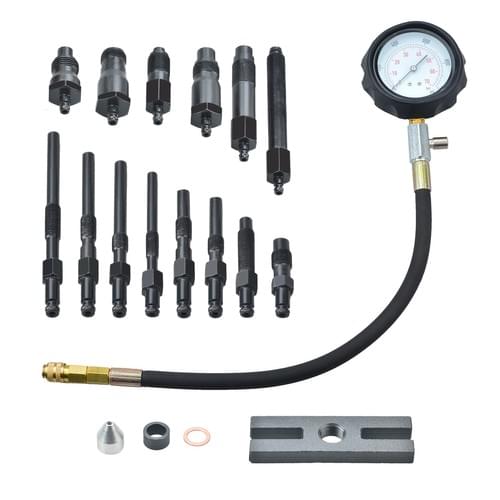

17pc Diesel Engine Compression Tester Set Cylinder Pressure Meter Truck

This compression testing set has fittings for replacing injectors and glow plugs. Please Refer to the list below for details of fittings

and thread patterns and sizes.

Quick release pull down coupler for a quick change between hoses and adapters.

Specifications

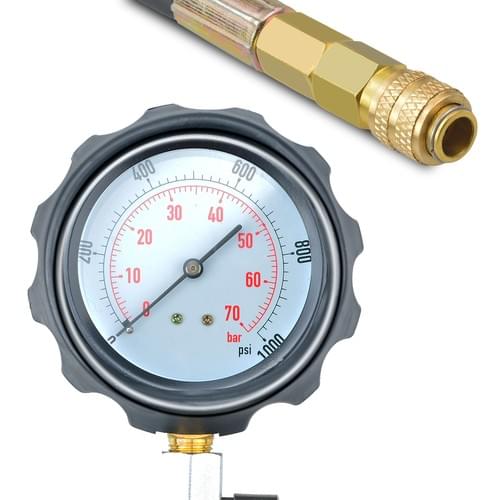

• Gauge with PSI and BAR readings

• 0-1000PSI

• Quick release push button valve

• Flexible hose

• x14 adapters

16 Piece Cylinder Pressure Meter

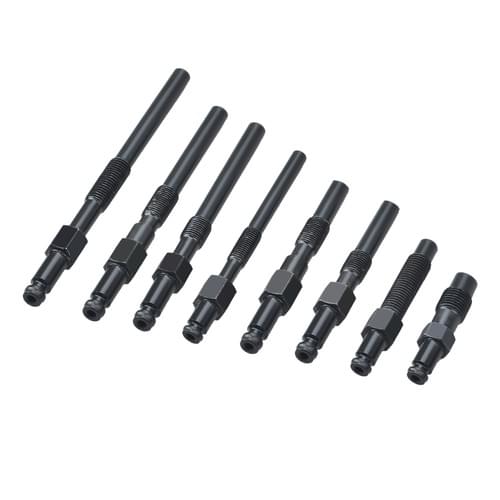

Glow Plug Adaptors sizes:

M10 x 1.0: 83, 91, 102, 113 & 119mm. M10 x 1.25: 64 & 135mm. M12 x 1.25: 47mm. M22 x 1.5: 118mm

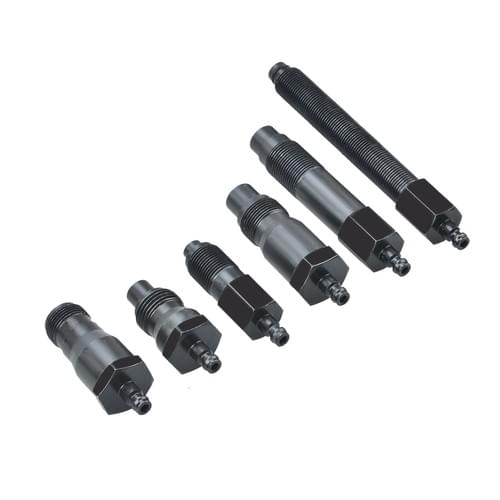

Injector Adaptor Sizes:

M20 x 1.5: 75mm. M22 x 1.5: 73mm. M24 x 1.5: 88mm. M24 x 2: 63mm

Pressure gauge up to 70 bar
